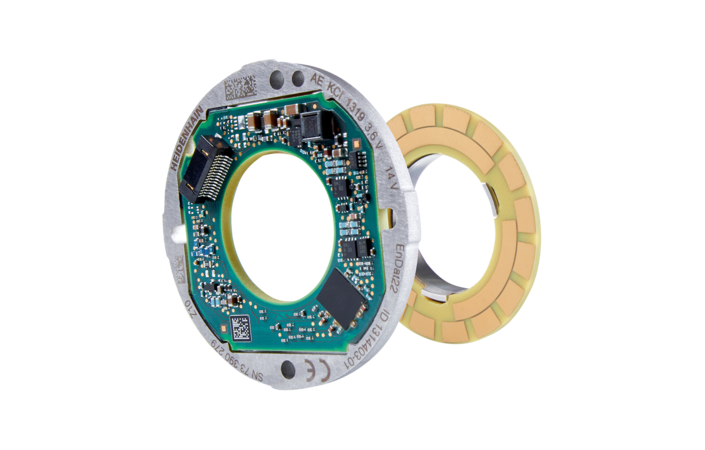

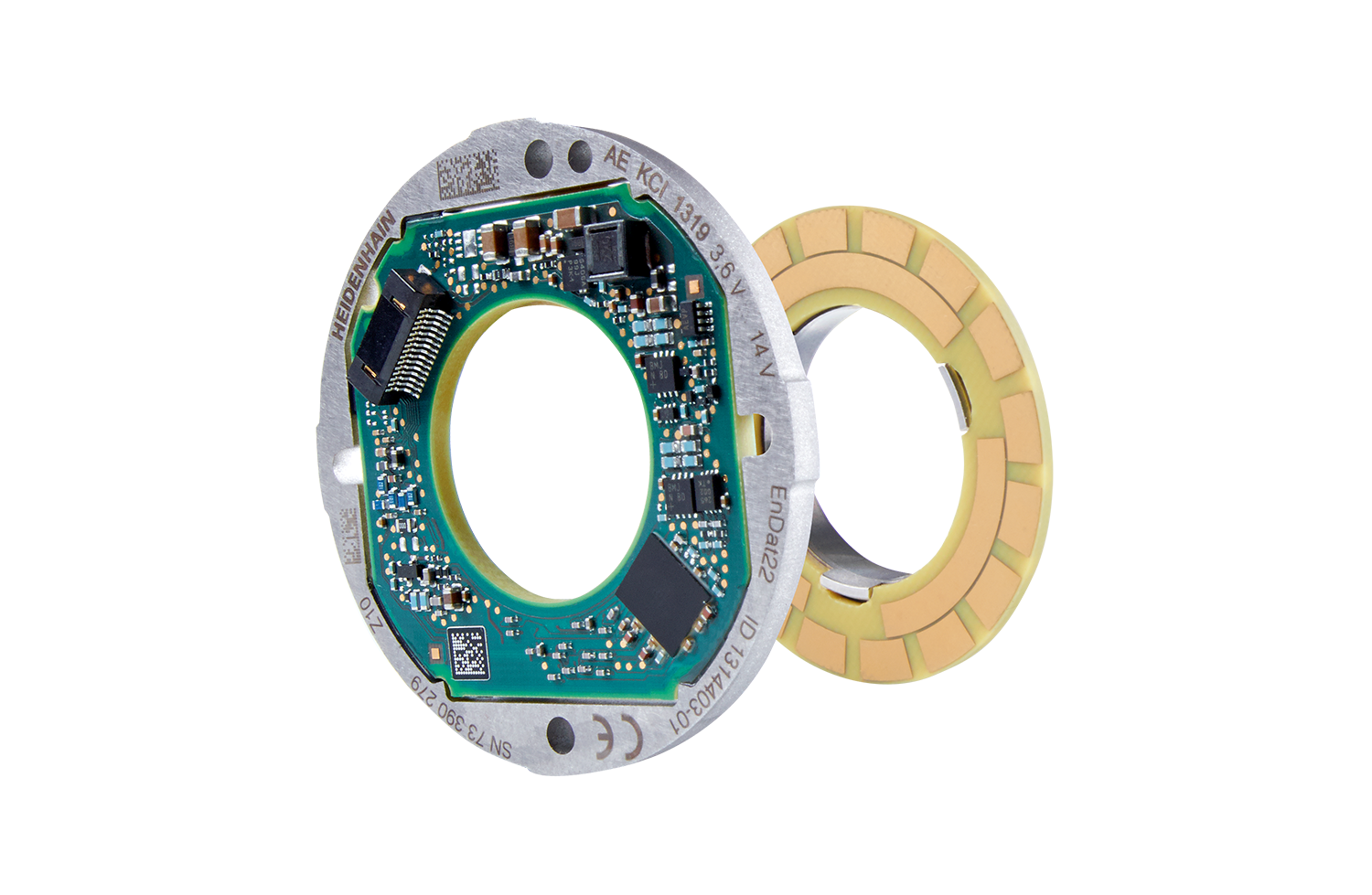

KCI/KBI 1300 series

Absolute rotary encoders without integral bearing

  • High axial tolerance of up to ±0.5 mm
  • Hollow through shaft with Ø 25 mm
  • Robust inductive scanning
  • Positioning accuracy of down to ±90"
  • 524 288 positions/rev.
  • Multiturn functionality for up to 65 536 revolutions
  • Maximum operating temperature: 115 °C
  • Interface: EnDat
  • Housing diameter ≈ 59 mm

Robust design

The rotor unit is screw-fastened or press-fitted for direct coupling. This rigid design permits high vibrational loads of up to 400 m/s² on the stator and 600 m/s² on the rotor. The robust inductive scanning method is also particularly resistant to contamination and magnetic fields.

Functional safety

Rotary encoders of this series are available with functional safety and a functionally safe mechanical connection. Once integrated into an application with up to SIL 3 safety, they minimize malfunctions and facilitate the safe operation of machines and systems.

Wide range of applications

For a wide variety of applications, this series offers the right encoder, including a multiturn version with a battery-buffered revolution counter for up to 65,536 revolutions or a version with external temperature sensor support.

Compact design

The rotary encoders of this series feature high ruggedness and reliability in a compact design. Their small footprint makes them ideal for tight installation spaces.

The KCI 1300: small and light for compact robot motors

Cancel

live

Quality

×

Product variants

The KCI/KBI 1300 series consists of a scanning unit and a graduated disk. For more information, please contact our Sales department by phone or e-mail, or through our contact form.

You're looking for other solutions for your industry? Our industry overview will help you find the answer.

Scanning units

select...
select...
select...
select...
12 results
ID number
Product
Differentiable revolutions
Form of scanning unit

Graduated disks

select...
select...
8 results
ID number
Product
Safety design
Rotor design
